"The Weather Display is a big hit, especially with the frequent visitors to our office."
- Horizon Systems, Offshore Oil Ice Management in the Canadian Beaufort Sea

Color Weather Display Console

Displays weather information • Designed to be viewed clearly from a distance • Industrial grade WVGA touchscreen

Seven-inch, TFT color LCD panel with 800 x 480 pixel resolution.

Performs computations for wind chill, heat index and other calculated parameters • 200MHz ARM9 CPU

Serial or ethernet connection: Connect directly to weather station with serial port or connect to a Weather MicroServer over a network utilizing an existing Ethernet infrastructure -- no extra wiring. The MicroServer configuration also allows for data from one weather station to be monitored from multiple display consoles at various locations.

Compatible with all CWS weather stations.

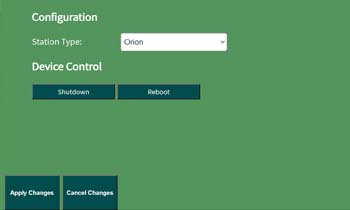

Screens can be factory-customized to meet specialized market and industry requirements.

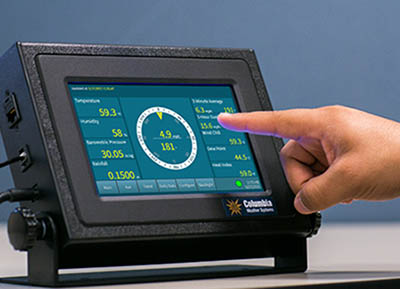

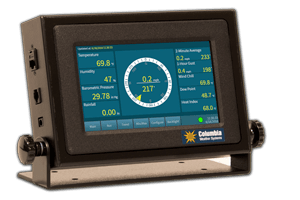

Desktop Version

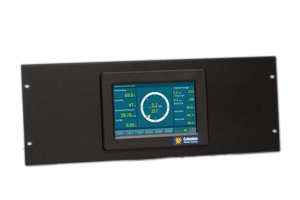

19" Rack Mount Version

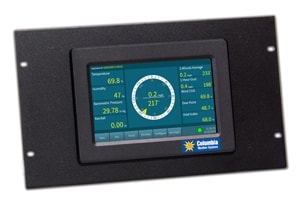

Panel Mount Version

Displays:

• Date and time
• Wind chill, dew point, heat index and rain rate
• Rain for today, the week, the month and the year
• Wind averages and gusts

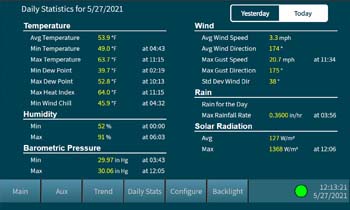

• Min/max values and time for all parameters for the current day and previous day

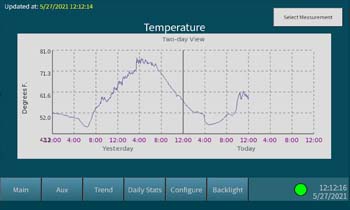

• Trend graphs for all parameters
• Weather data in metric or English units

The Color Weather Display is offered in three formats:

• Desktop/wall-mount chassis (10.9" W x 7.2" H x 2.1" D)
• 19" rack mount (19" W x 6.7" H x 2.4" D)
• Panel mount (13" W x 7.5" H x 2.4" D)

PDF Downloads

• User Manual
• Brochure

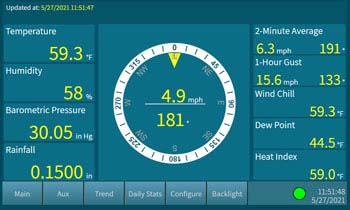

Main Screen
